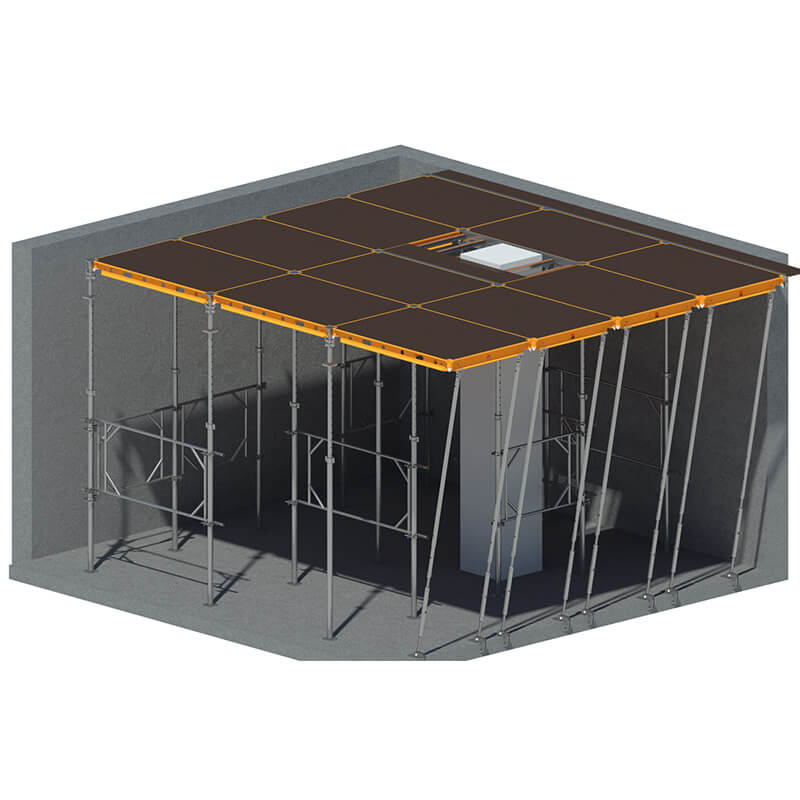

Alu Early Drop Form System

U GOOD Alu Early Drop Form System,it’s a fast installation with high efficiency formwork system,could dismantal panel fomwork first,can help fast construction and save panel quantity,when use this system,only use 100% panel + 200% or 300% props,can help jobsite construct reach to 4 – 5 days/floor,all panel is aluminum frame with 11mm plywood ,man power can do it without any crane assist,all system is European product standard and light duty.

Advantages:

● The complete set of Early Drop system technology can greatly save the amount of formwork investment and reduce the amount of formwork configuration by 1/3 to 1/2.

● Shorten the construction period, accelerate the construction speed, and improve work efficiency.

● Extend the service life of the template and save construction costs.

Mainly Components:


Item	Size		Weight /KG
Panel	Early- Dismantling Panel	1800×1800	51.5
		1800×1200	34.0
		1800×900	24.0
		1800×600	20.0
		1200×1200	23.0
		1200×900	20.0
		1200×600	19.0
		900×900	12.0
		900×600	11.0
	Plywood	Usage:10-15 times(AAAA Grade)	15.0
	Plywood	Usage:6-8 times(AAA Grade)	14.5
Support System	Head	Early-dismantling Deck Bearing	5.0
	Head	Adjustable Scaffold adapter	3.1
	Steel Prop	Prop 350(H=1.90m-3.50m) 3T	18.0
		Prop 400(H=2.20m-4.00m) 3T	25.0
		Prop 500(H=2.70m-5.00m) 3T	40.0
	Connection Frame	Connection Frame 1800	12.6
		Connection Frame 1200	9.5
		Connection Frame 900	8.6
		Connection Frame 600	7.8
	Push pull prop	Push pull prop (L=2.7M~3.5M)	19.4
Side Steel beam With Wood	Side steel beam with wood	Side steel beam with wood 1800	11.2
		Side steel beam with wood 1200	8.2
		Side steel beam with wood 900	6.6
		Side steel beam with wood 600	5.0
	Adjustment Beam	Adjustment Beam L=1800	12.1
		Adjustment Beam L=1200	8.8
		Adjustment Beam L=900	7.1
	Transverse Beam with wood	Transverse Beam with wood L=1200	2.3
		Transverse Beam with wood L=900	1.7
		Transverse Beam with wood L=600	1.2
