Framepro Form

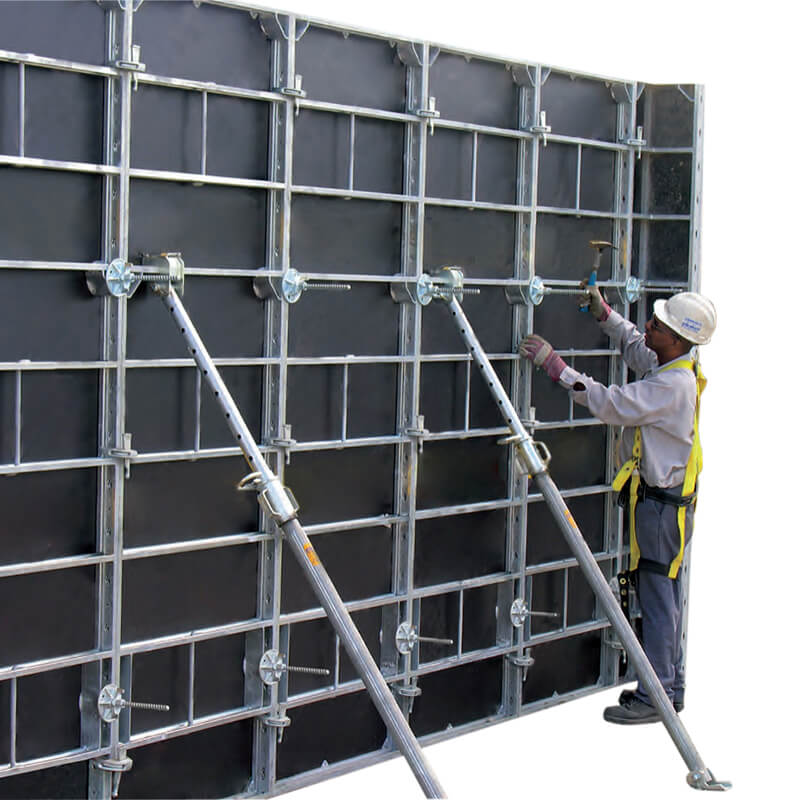

U GOOD Framepro Form system,it’s a fast formwork system with no crane lifting,could install big size panel fomwork by manpower only,saves time and labour costs,help fast construction and save panel quantity,the formwork is light in weight and easy to handle,it widely use for wall,columns,beams and foundation,make excellent concrete surfaces because of panel high pressures,panel is steel frame with 15mm plywood,all system is European product standard.
Specifications:
● Formwork panel is made from Q355 grade profile steel with 15mm plywood,the depth is 92mm
● Standard Panel width is 900mm, 750mm, 600mm 450mm,300mm; Panel height is 3000mm, 2700mm, 1500mm and 1200mm
● Weights is around 29kg-33kg/sqm
● Max permissible fresh concrete pressure: 60 kN/sqm
Advantages:
● Easy and simple connection clamp for all panel connections.

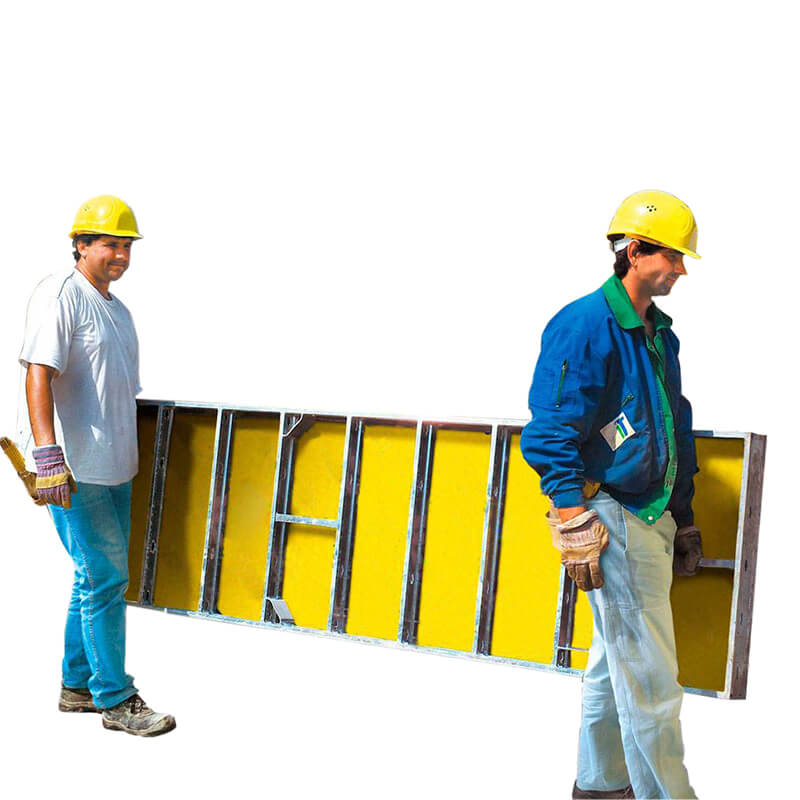

● Fast formwork erection output on site,light weight can be transported and assembled by hand,lager size
● Can be faster installation if crane assistance.
● Long service life and easy to clean due to high-temperature powder coated or galvanized frame

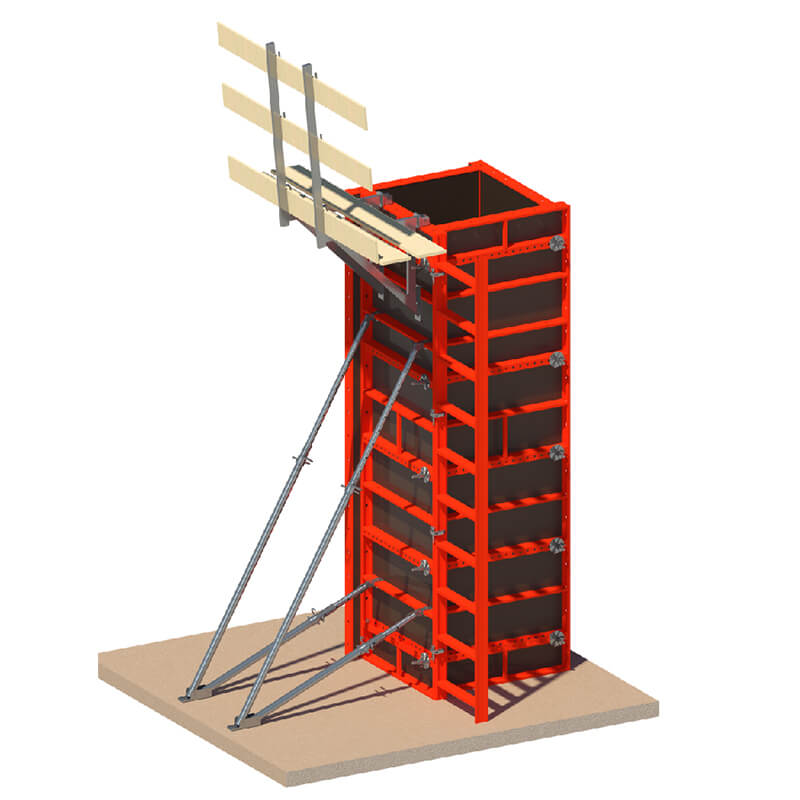

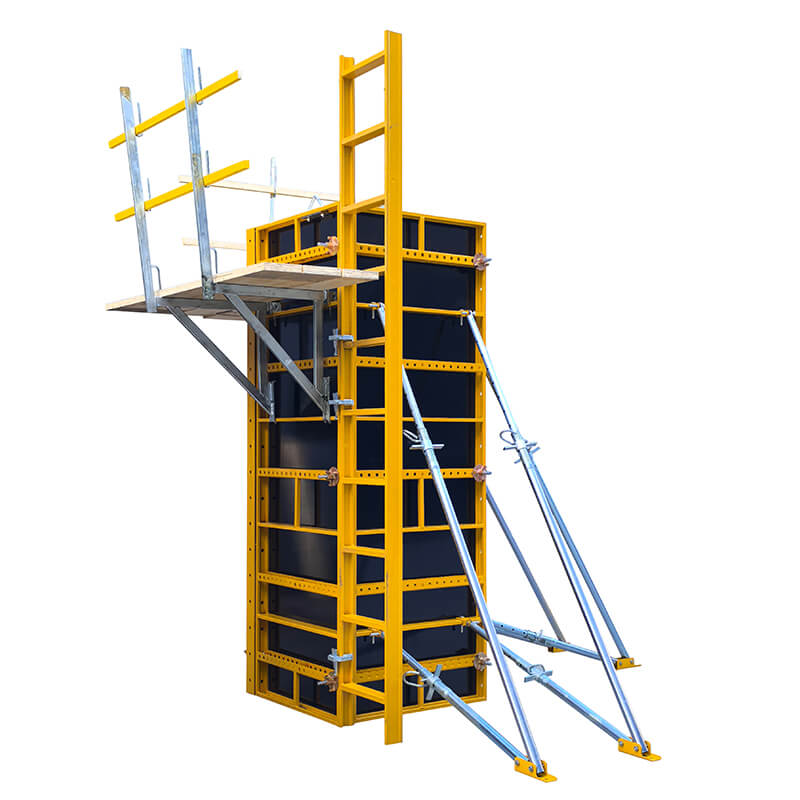

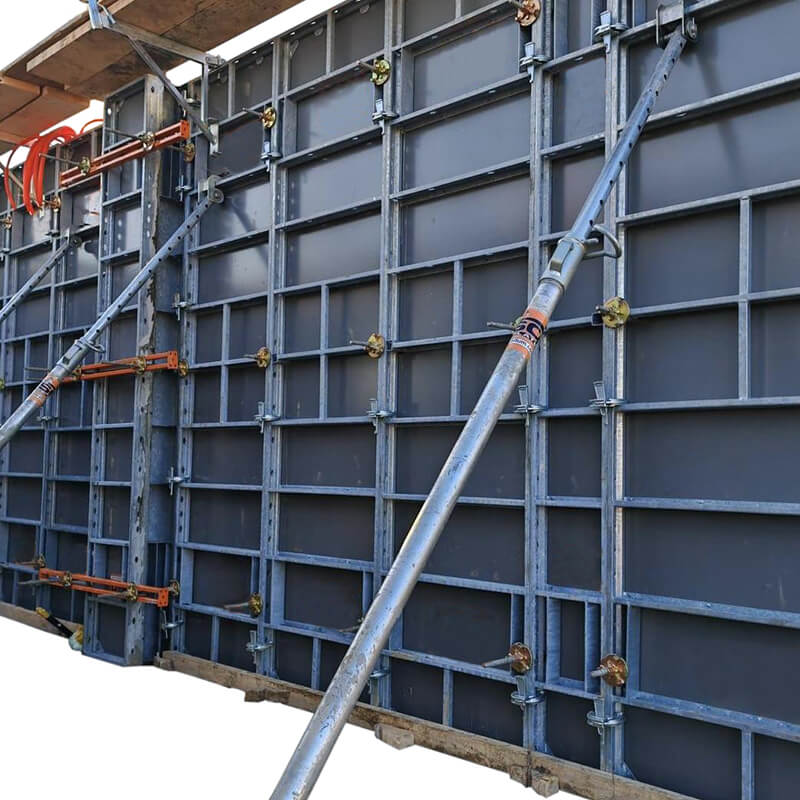

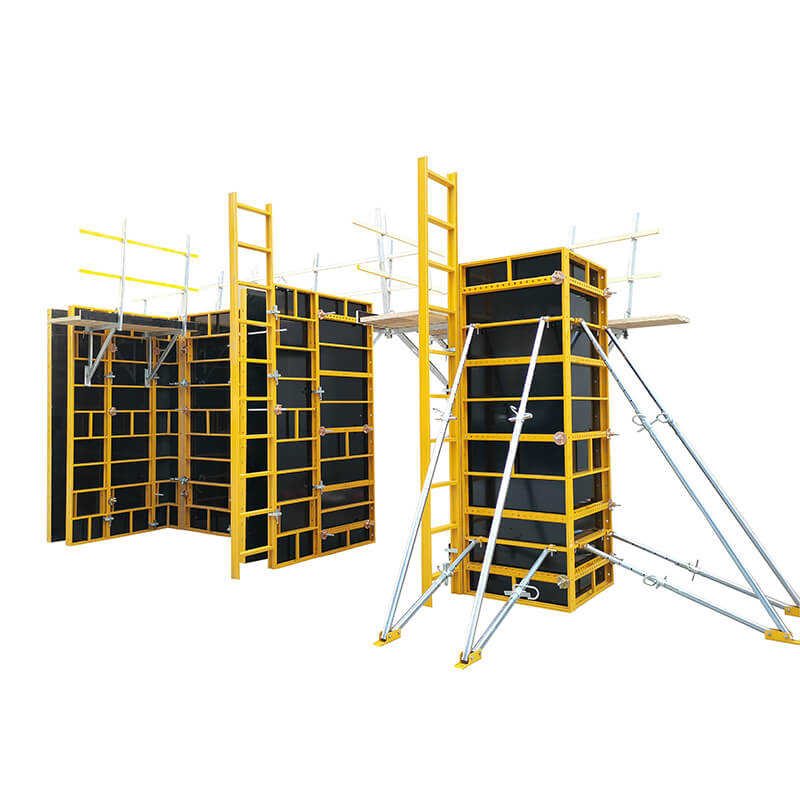

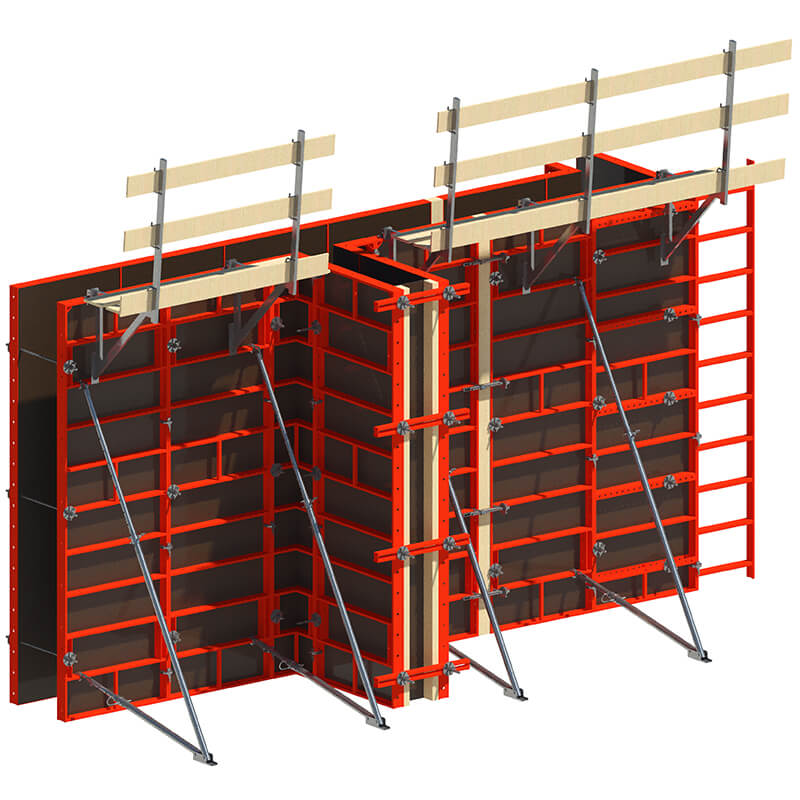

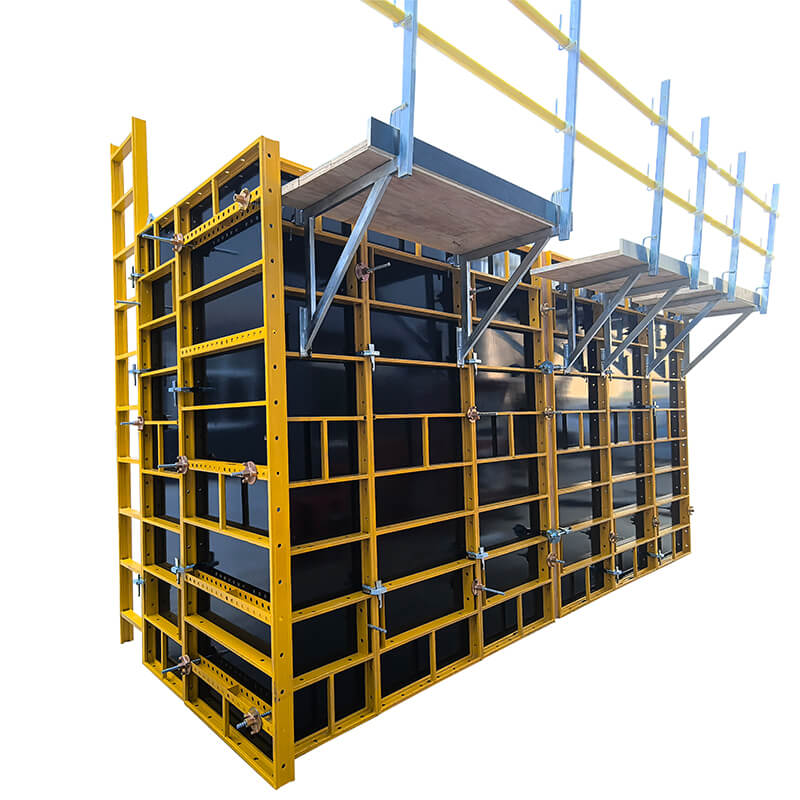

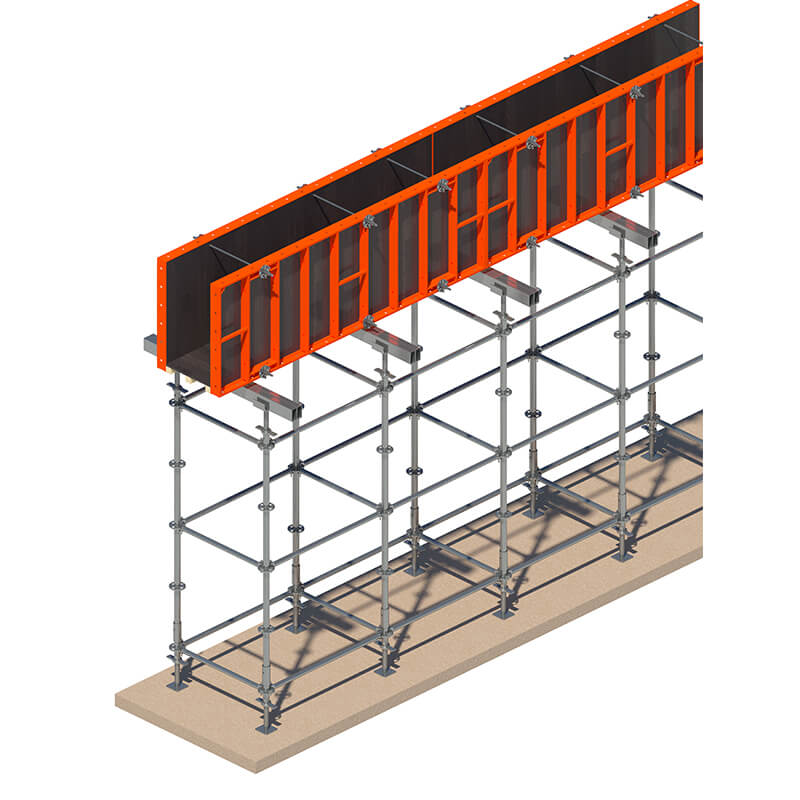

● Widely use for walls,columns,beam,foundation and others.
