Economic Light Duty Steel Props
U GOOD Economic(Light-Duty) Steel Props

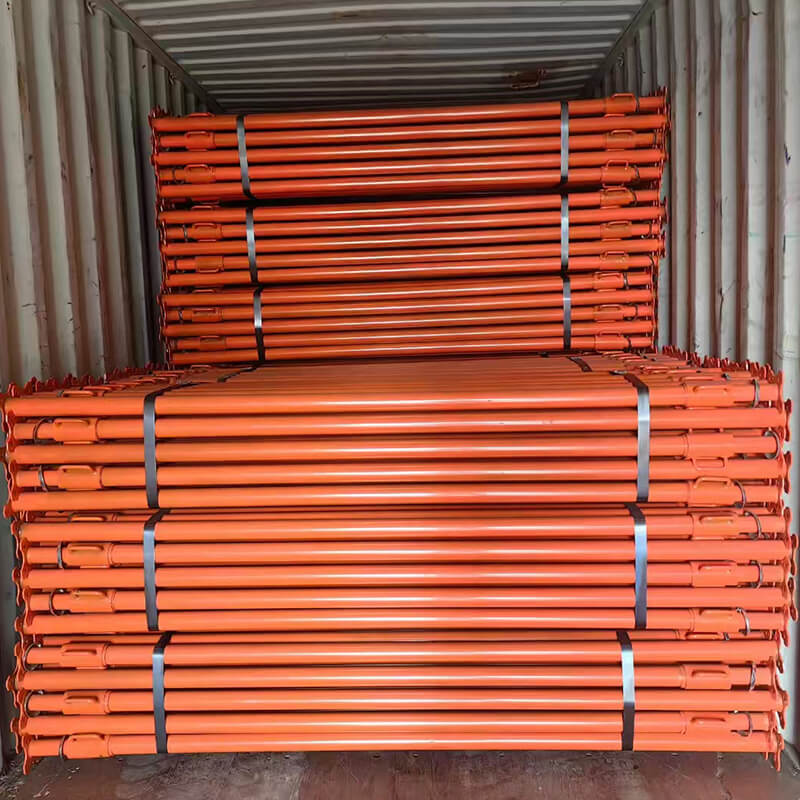

U GOOD Economic Light Duty Steel Props is simple and flexible,the installation is convenient,being economical and practical.It takes small space and is easy to store and transport,widely use for slab,beam supporting system.The max bearing capacity, height, pipe diameter, galvanizing method and galvanizing thickness of steel support can be customized according to the situation
Specification:
| Type | Thickness
/mm |
Minimum length/ m | Maximum length/m | Outer tube diameter / mm | Inner tube diameter / mm |
| Z-17~30 | 1.5 ~ 3.5 | 1.7 | 3.0 | 60/56 | 48 |
| Z-18~32 | 1.8 | 3.2 | |||
| Z-20~35 | 2.0 | 3.5 | |||
| Z-20~36 | 2.0 | 3.6 | |||
| Z-22~40 | 2.2 | 4.0 | |||
| Z-25~45 | 2.5 | 4.5 | |||
| Z-28~50 | 2.8 | 5.0 | |||
| Z-30~50 | 3.0 | 5.0 | |||
| Z-35~60 | 3.5 | 6.0 | |||
| X-08~14 | 1.5 ~ 2.5 | 0.8 | 1.4 | 48 | 40 |
| X-16~30 | 1.6 | 3.0 | |||
| X-20~35 | 2.0 | 3.5 | |||
| X-22~40 | 2.2 | 4.0 |
Features：
● Multi-Type selectable.
● Economic Type (Light Duty),price competitive.
● Surface painting,powder coated,galvanized,hot galvanized.
● Bearing capacity 2Tons,3Tons,5tons.
