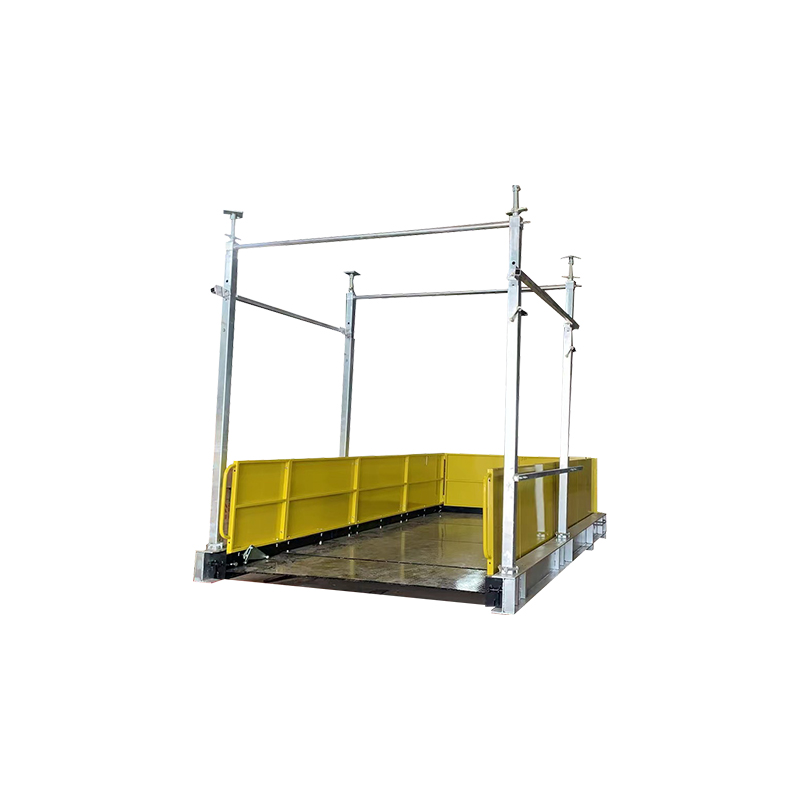

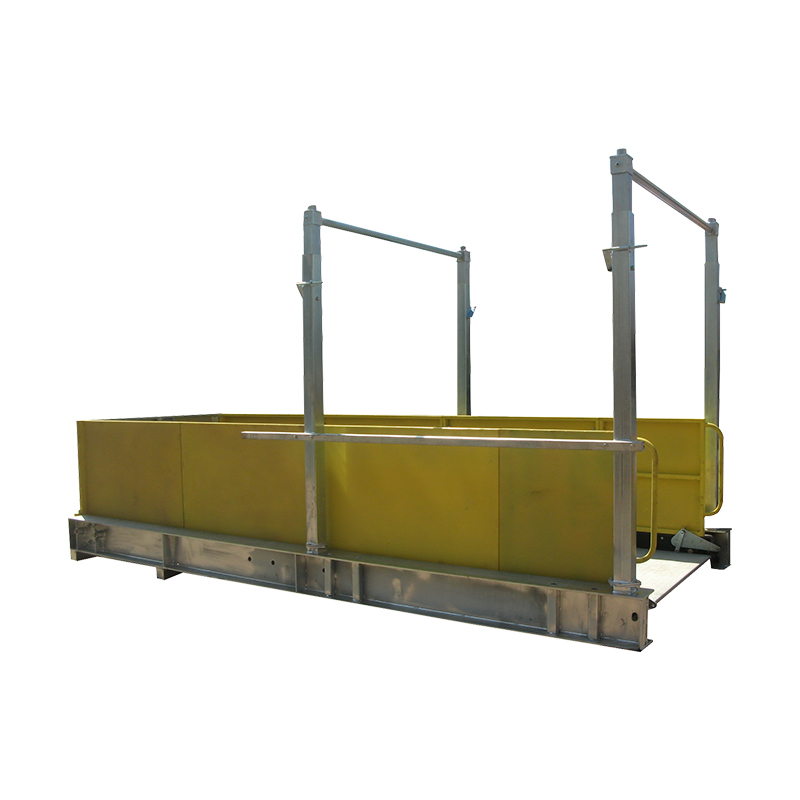

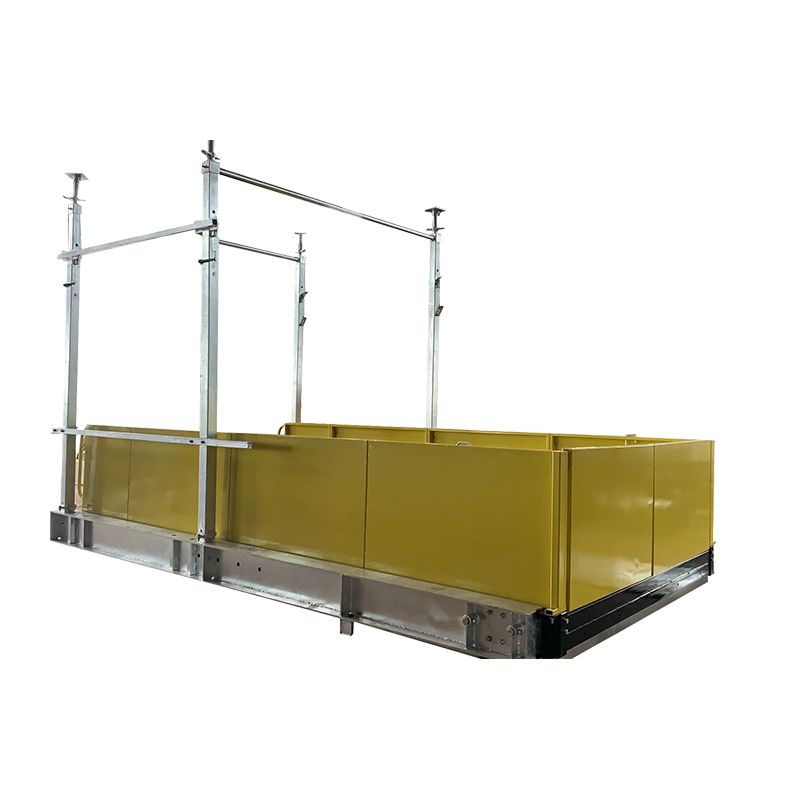

Super Deck Material Platform

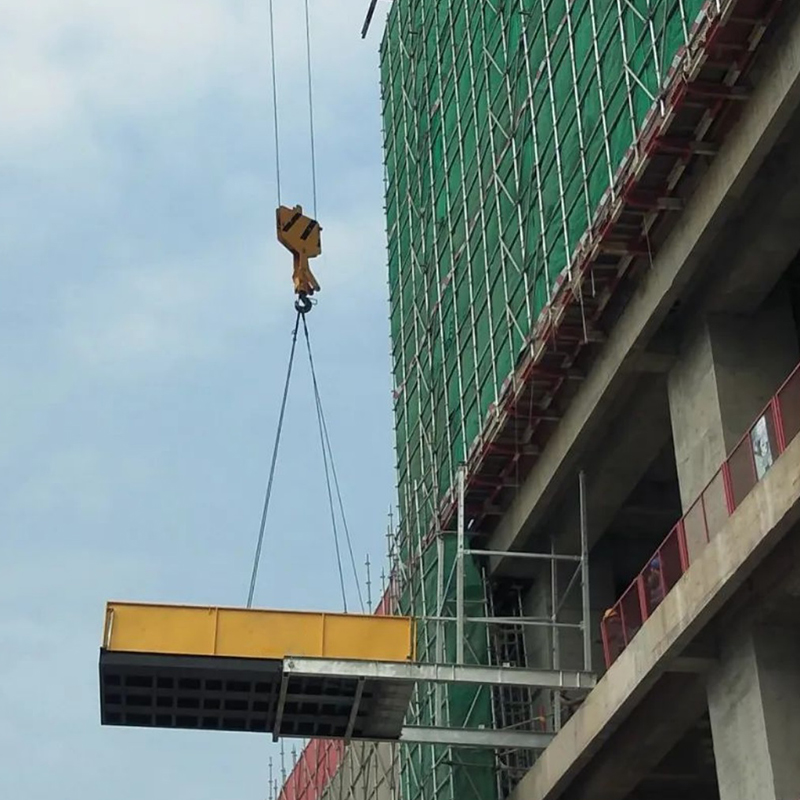

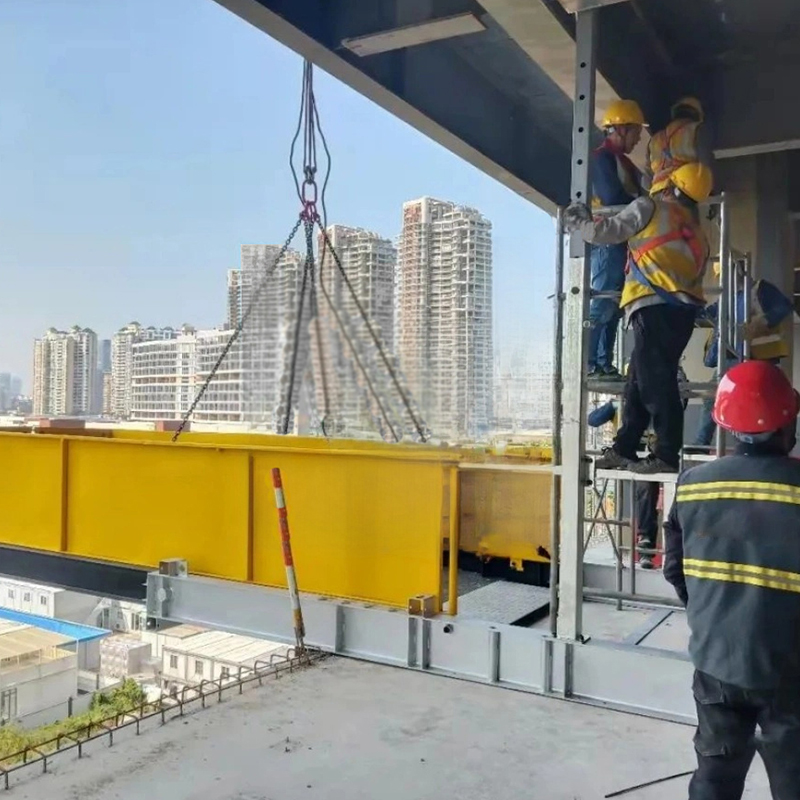

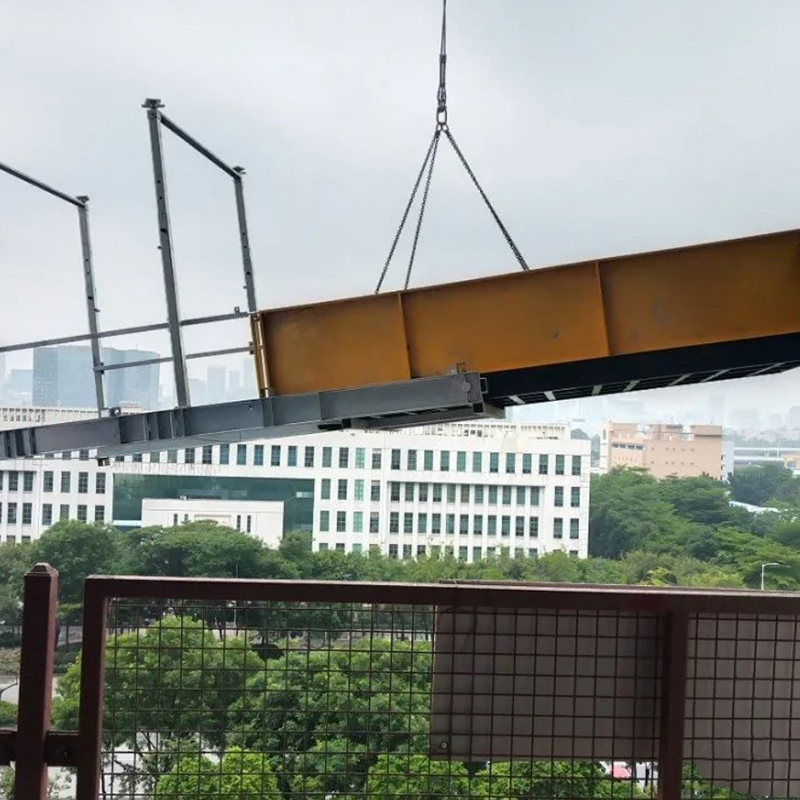

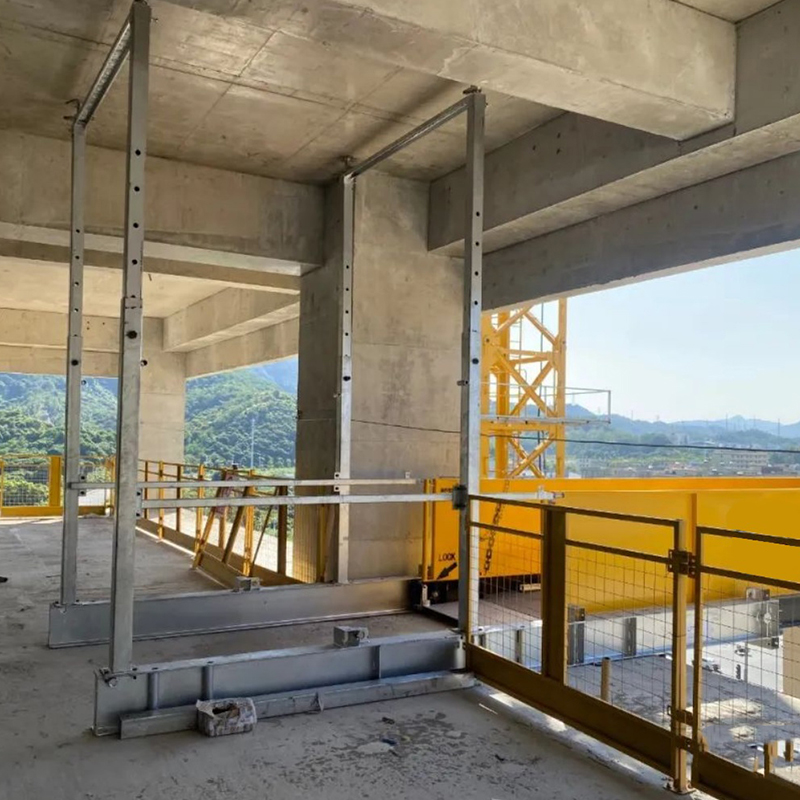

U GOOD Super Deck is a retractable & movable loading platform system ideally positioned vertically one above the other for fast delivery of building materials, directly to the designated floor of a multi-storey building.

Specifications:

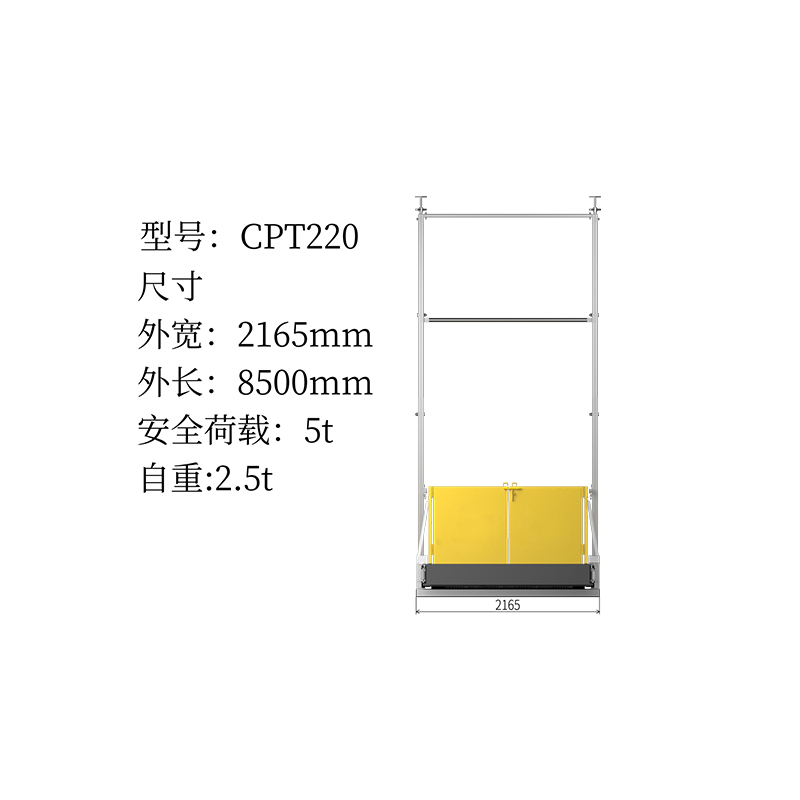

Specifications	SUPPER DECK 2.2	SUPPER DECK 2.6	SUPPER DECK 3.2
Length / mm	8500	8500	8500
Width / mm	2200	2600	3200
Height / mm	1200	1200	1200
Max Tare / kg	5000	5000	5000
Method	4 Prop method / 2 Prop method / Bolt down method

Features:

● Quicker installation & relocation – Approx. 15 min

● The platforms are made from steel and have a lifespan of over 15 years.

● Max 5000kg safe work load (UDL)

● One person easy push-pull operation.

● Safer, quicker loading & unloading of materials.

● The load reactions are distributed vertically as the Super deck System is an integral part of the building which creates one self-supporting structure. Each floor supports the other floors.
